Ceramic Fiber Fire Blanket for High-Voltage Cable Wrapping

Product Descriptions

The single-sided aluminum foil fire blanket is a class-A non-combustible material, available in class-A or class-H fire-resistant variants with a fire resistance duration of 2 hours and 4 hours respectively. Made of low-smoke and halogen-free materials, it is non-toxic, harmless and free of irritating odors, and can effectively provide heat insulation and fire separation.

Product Details

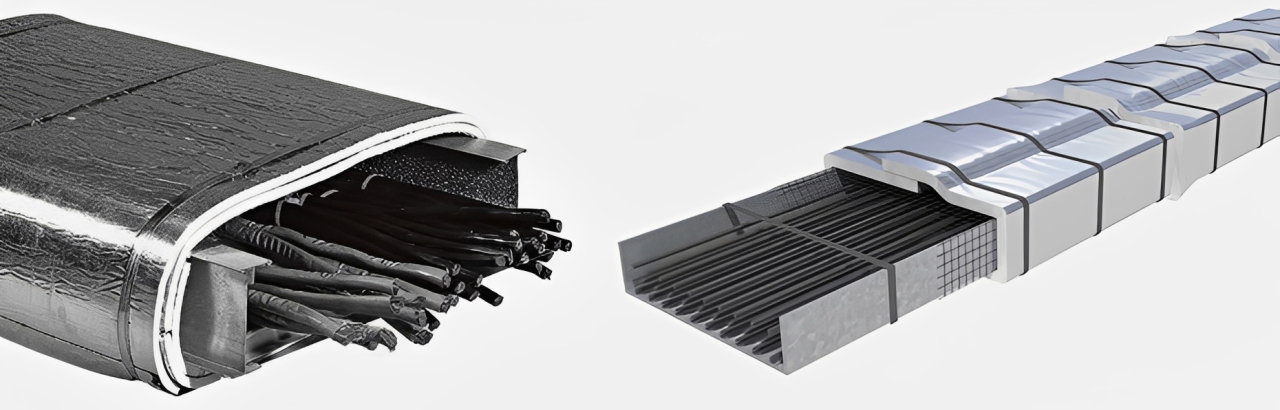

ad9e5c03fa944fb7ac9de39fbd0fddd9_26 (1)

It is a Class A or Class H fire-resistant product with a fire resistance duration of 2 hours and 4 hours respectively. Made of low-smoke and halogen-free materials, it is non-toxic, harmless and free of irritating odors, and can effectively provide heat insulation and fire separation. Ceramic fiber fire blankets comply with the relevant provisions of GB/T 3003, and are mainly made of aluminosilicate fiber or zirconium-containing aluminosilicate fiber.

Ceramic fiber fire blankets with an outer layer compounded with aramid 1414 organic fiber can be applied to high-voltage cables and their accessories with explosion-proof requirements. The key technical indicators of the outer layer and fixing modules meet the provisions of the technical specifications for fire protection of high-voltage cables and channels. Among them, the compressive strength is tested according to the test method specified in GB 3836.1, and the warp and weft strength is tested according to the test method specified in GB/T 3917.1.

Combining our expertise in fiber technology, we provide customers with safe, reliable and cost-effective power fire protection solutions.

Technical Requirements for Ceramic Fiber Fire Blankets

Refractory Fiber Fire Blanket			Fixing Modules (Excluding Anchors)
Bulk Density/(kg/m³)
Nominal Value	Allowable Deviation Range	Tensile Strength/kPa	Nominal Value	Allowable Deviation Range
100	85–114	>60	180	170–200
130	115–149	>80	220	201–234
160	150–185	>90	240	235–255
Mark	Permanent Linear Change After Heating(Maximum Service Temperature)	Resilience	Oxygen Index/%	Flame Retardancy
Grade-Category-Nominal Bulk Density	<4% (1250℃)	>80%	>45%	Class-A Non-combustible
