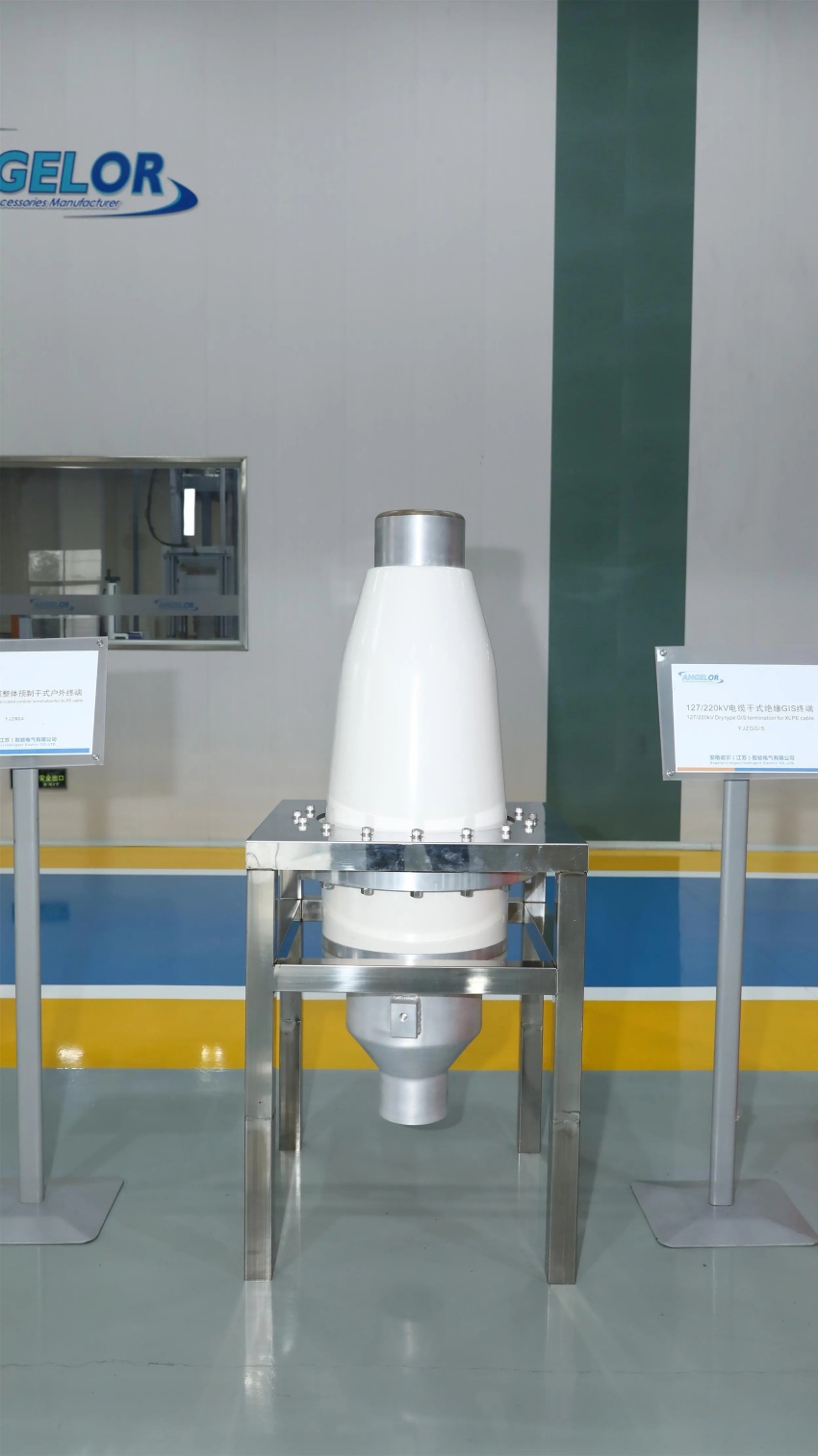

220kV GIS termination

Product Descriptions

● The whole dry structure is not filled with insulating oil, which overcomes the aging problem of stress cone caused by soaking in insulating oil, and improves the service life of stress cone and avoids leakage in operation.

● The surface of stress cone is attached to the epoxy resin insulator by a combined spring compaction device, which can keep constant interface pressure and overcomes the relaxation phenomenon caused by material aging of stress cone to ensure the safe operation of terminal.

● The product has the advantages of light weight, small volume, compact structure and convenient installation and maintenance.

● High-voltage metal shield electrode is embedded in epoxy resin insulator. Rubber stress cone adopts imported high-elastic liquid silicone rubber and optimizes the structure shape of stress cone product.

Product introduction: 220kV Dry Type GIS Terminal Product Introduction.pdf

Structure diagram: 220kV dry-type GIS terminal (short type) structure diagram.pdf

Structure diagram: 220kV dry-type GIS terminal (long type) structure diagram.pdf

Product Details

Technical Specifications
Area Of Application
Applicable cable cross-sections:	240~2500 mm2
Max.system voltage:	252 kV
System rated frequency:	50 Hz
Elevation:	≤2000 m
Operation temperature;	-55 ℃~45 ℃
Cable Shield Style	Tape/wire/corrugated Al
Design Data
Height		1260±30 mm(short type) 1617±30 mm(long type)
Weight(excluding cable)		180 kg / 396.83 lbs(short type) 230 kg / 507.06 lbs(long type)
Epoxy resin insulator	Material	Epoxy resin
	Withstand pressure	1.0 MPa
Compression device of stress cone		Spring compression
Min.working pressure of SF6		0.2 MPa
Storage temperature		0 ℃~35 ℃
Installation temperature		5 ℃~35 ℃
Electrical Test
Electrical Type Test (IEC 62067)
Heating cycle voltage	254 kV
Partial discharge test at ambient and elevated temperatures	No detctable discharge exceeding the declared sensitivity(191 kV, 3.8pC)
Lighting impulse voltage	±1050 kV
Electrical Routine Test (IEC 62067)
AC withstand voltage (wet,1 min)	460 kV
Partial discharge test	No detctable discharge exceeding the declared sensitivity(191 kV, 3.8pC)
